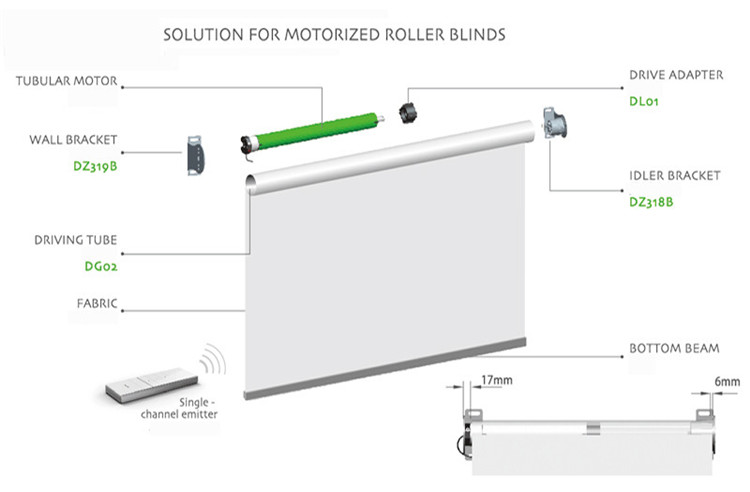

LTS tubular motor is mainly used in home automation such as roller shutters, awnings, screens, sunshades,roller blinds,roller door etc. With low noise, small size and easy installation, tubular motors have been widely used in offices, residential, hotels, showrooms, villas and many other places.
Product Descriptions
Tubular motor particularly suitable for installation in narrow elements like window shutter, small size roller shutter doors etc.
Product Features / Advantages / Benefits
ü Light weight, the weight is only 1.5-5.5kgs for different size motors
ü Extremely quiet, when the motor running, the running noise in only 42db
ü Easy to be installed and replaced
ü Easy manual operation when power failure
ü Pioneering separate Up / Down limit switch design
Date Specifications
|
Item name |
Rated torque |
Rated speed |
Tube diameter |
Rated Voltage |
Rated frequency |
Rated Power |
Running time |
Max turns |
|
N.m |
rpm |
mm |
V |
Hz |
W |
Min |
turn |
|
|
LTS45M-30/15 |
30 |
15 |
45 |
230/120 |
50/60 |
191 |
4 |
22 |
|
LTS45M-40/15 |
40 |
15 |
45 |
230/120 |
50/60 |
198 |
4 |
22 |
|
LTS45M-60/8 |
60 |
8 |
45 |
230/120 |
50/60 |
205 |
4 |
22 |
|
LTS59M-80/15 |
80 |
15 |
59 |
230/120 |
50/60 |
330 |
4 |
22 |
|
LTS59M-100/9 |
100 |
9 |
59 |
230/120 |
50/60 |
340 |
4 |
22 |
|
LTS59M-120/9 |
120 |
9 |
59 |
230/120 |
50/60 |
350 |
4 |
22 |
|
LTS64M-140/7 |
140 |
7 |
64 |
230/120 |
50/60 |
475 |
4 |
22 |
|
LTS64M-180/7 |
180 |
7 |
64 |
230/120 |
50/60 |
558 |
4 |
22 |
|
LTS92M-230/12 |
230 |
12 |
92 |
230/120 |
50/60 |
602 |
4 |
22 |
