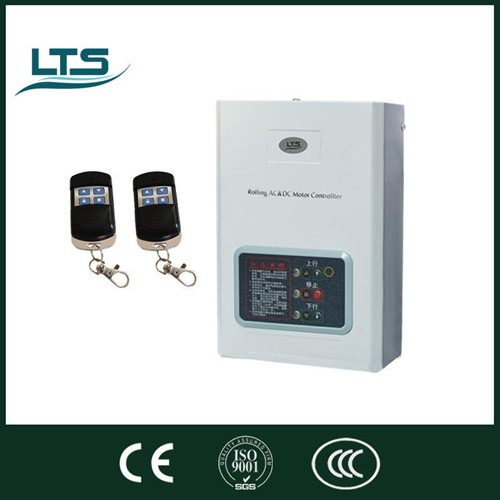

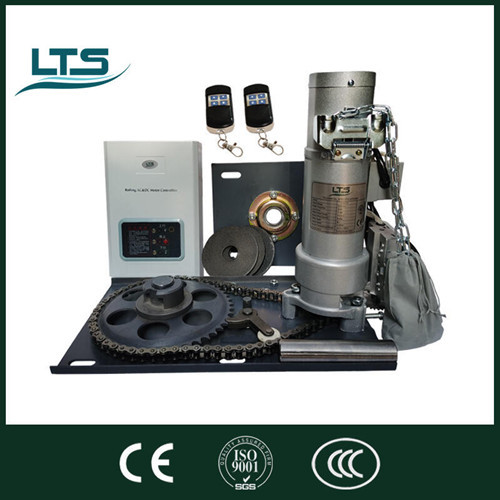

PRODUCT DESCRIPTIONSThe DC motor should be installed with control box system. If there is power failure, the control system automatically switch to its build-in battery, so you can still use the
remote control / push button to open / close the doors for several times.
PRODUCT FEATURES / ADVANTAGES / BENEFITS
Stylish design, up-to-date Technology
Overheat protection and overload protection
Low noise
Easy manual operation when power failure
Precise/accurate Limit switch
Easy to install and adjust
Low maintenance
Security, with anti-fall protection device
Long service life, Durable
With control box and built-in battery
Could be used to open/close the door when power off
TECHNICAL SPECIFICATIONS
| Model |
Rated voltage / Frequency |
Input power |
Rated output torque |
Max lifting capacity |
Rated current |
Rated output speed |
Max lifting height |
Continuous working time |
Ambient temperature range |
| Single Phase |
| LTS-600-DC |
220 V / 50 Hz |
360 W |
412 N.m |
600 KGS |
15 A |
3.8 r/min |
6 meters |
15 Min |
-20°C ~ +50°C |
| LTS-800-DC |
220 V / 50 Hz |
456W |
647N.m |
800 KGS |
19 A |
3 r/min |
7 meters |
15 Min |
-20°C ~ +50°C |
INSTRUMENT
APPLICATION
Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks,factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.
